Project Methodology

Product design

All the methods and simulation process work are explained to gain the objectives of this project. The objectives of this project are purpose to simulation of polypropylene distribution with different dimension of parison via ANSYS software. Extrusion blow moulding is selected as the processing for this project. The methods are basically refers to the design of project methodology and procedure. The process flows of the overall project are illustrates in Figure 3.1. In here, the first stage to start this project is searching the literature review that will relate for this project. The expected result from the literature review searching can be approving that the data and knowledge given is very taught to ensure it is correct. Sketch and model preparation of the extrusion and 2D blow mould using ANSYS software to show the roles model of product that will analyse. Design the different diameter of parison which are 8, 10, 18, and 20mm to show the effect of the thickness distribution on the wall. The designing mention that it will design the test part which is bottle that are blow mould and parison part. The entire dimension must be accurate and comfortable for the product.In simulation work is divided into five stages process simulation setup. Mould and parison is the main part that being to design in first stage. The process design and simulation of this project are based on flow chart as shown in Figure 3.2. Sketch the mould and parison in the geometry stages which are design the parison with 8, 10, 18, 20mm in different diameter. The second stage which is the meshing stage where it uses internal data structures to assign an order to the elements, faces, and mesh points in a mesh and to maintain contact between adjustments. In the third stage, where the setup Polyflow data is property setting. Define mould, material data which is viscosity, density, and gravity will measure at the setup. Numerical parameter also will set all the data which are the initial time value, upper time limit, initial value of time step, min and max value of time-step and tolerance. In this project thickness and time step are the main analysed that it want to control and see the product occur when the blowing process begin. All the test is can be control by using software which is using ANSYS software. In this process, we list all control variables and measurable that will involve. Measureable variable can also categorize as dependent variables and control variable is also known independent variables. The constant mould being used and different diameter of parison are the independent variables and the material properties which are density and viscosity are dependent variable. The next stage, after analyse blow behaviour it can see the effect when the blow moulding process begin. The problems deal with the cavity filling stage of the moulding process and it is assumed that a preform has been positioned inside the mould. The contact between the fixed mould and the preform is considered. A contact pressure which is from the journal applied to the preform which enters the mould and eventually takes its shape. Data collection and verification is done when the simulation process because in the solution process, the post processing setting, selecting of colour and variables was set at early before simulation. At the last stage which is the result stage. The thickness will set as thickness, set the measurement line and generate the graft before analyse the data which different parison. On the simulation the thickness and the stress profiles in the bottle will be analysed. Result analysis may show all the effect of parameter as mention. Lastly, write the conclusion from overall project and documentation process is done.

Sketching mould and parison in gemometry stage

Meshing in size 0.001m

Final simulation view on 10mm diameter parison

Final Presentation FYP 1



        Muka sebelum presentation PSM..ready..and go..!

02 December 2013 is my presentation date with my panel Dr. Amir Azizi and my supervisor Miss Suraya Sulaiman. Alhamdulillah, everything is good but have more correction to do do especially at chapter 3. Chapter 3 is most taught chapter which are to predict the result and all data must include on this chapter. so see for FYP 2 soon.. :-)

GANTT CHART FOR FINAL YEAR PROJECT

LITERATURE REVIEW

In progress and will upload soon... :-)

This is our reference journal for this project and may use to construct the literature review draft...

1.ANSYS POLYFLOW SOFTWARE USE TO OPTIMIZE THE SHEET
2.ANSYS-POLYFLOW SOFTWARE USE TO SELECT THE PARISON DIAMETER AND ITS THICKNES DISTRIBUTION IN BLOWING EXTRUSION
3.Application of ANSYS POLYFLOW for Semiconductor Industries
4.POLYFLOW SOFTWARE USE TO OPTIMIZE THE PARISON THICKNESS IN BLOWING EXTRUSION
5.Simulation of Blow Molding Using Ansys Polyflow
6. Glass Fiber Reinforced Polypropylene Mechanical Properties Enhancement by Adhesion Improvement
7.Blown Film Extrusion: Experimental, Modelling and Numerical Study
8.Blow moulding for bottles
9.COMPARISON OF BOTTLE WALL THICKNESS DISTRIBUTION OBTAIN IN REAL MANUFACTURING CONDITIONS AND IN ANSYS POLYFLOW SIMULATION ENVIRONMENT
10.Preparation and Mechanical Properties of Polypropylene-Clay Hybrids

PROJECT : SIMULATION OF POLYPROPYLENE ON THE EFFECT OF THE BOTTLE WALL THICKNESS VIA ANSYS SOFTWARE

INTRODUCTION

This chapter provides descriptions on the background of study, problem statement, objectives of the study and scope of the study.

BACKGROUND OF STUDY

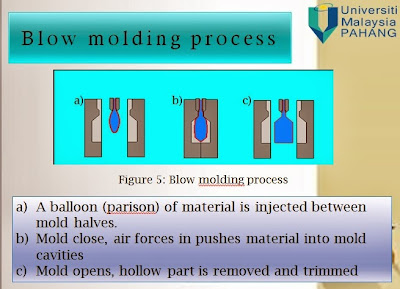

Blow moulding is a manufacturing process that used to create hollow plastic parts by inflating a heated tube until it fills a mould and forms that desired shape. It is a moulding process in which air pressure is used to inflate soft plastic into a mould cavity. It is an important industrial process for making one piece hollow plastic parts with thin walls, such as bottles and similar containers. Since many of these items are used for consumer beverages for mass markets, production is typically organized for very high quantities. The technology is borrowed from the glass industry with which plastics compete in the disposable or recyclable bottle market. (Pepliński.K and Mozer.A 2010). Blow moulding is accomplished in three steps which are design and simulation by using software, fabrication of a starting tube of molten plastic called a parison (same as in glass-blowing) and inflation of the tube to the desired final shape. Forming the parison is accomplished by either of two processes which are extrusion or injection moulding. Blow moulded parts can be formed a variety of thermoplastic material, including Low Density Polyethylene (LDPE), High Density Polyethylene (HDPE), Polyethylene Terephthalate (PET), Polypropylene (PP), and Polyvinyl Chloride (PVC). The advantages are it is very cheaper process than injection moulding multiple product methods which it used for producing receptacles in large quantities where the melted polymer is injected into the mould than blow through using air and the disadvantages it limited to hollow forms and the wall thickness is also hard to control as the larger the product being gets, the thinner polymer has to be stretched. The basic application on blow moulding process has two fundamental phases which are a parison of hot plastic resin in a somewhat tubular shape is created and it compressed air is used to expand the hot preform and press it against mould cavities. (Guide for extrusion blow molding; Advanced elastomer system). This project is delegate to investigation on simulation on polypropylene using the different diameter of parison and wall thickness distribution using ANSYS software. ANSYS software has the ability to detect contact between a free surface and a wall that occurs over time. The wall is typically a mould for blow moulding and thermoforming simulations, although the contact detection feature can be applied to other processes. The contact detection algorithm is applicable only for time dependent problems. After a free surface and wall have come into contact, it is possible to simulate their detachment under specific circumstances. Contact release typically takes place when the motion of a mould is reversed, or when the forming pressure results in the material being pulled away from a mould. (Ansys Inc., 2010).  A significant factor in the design stage of new blowing product is selection parison shape in order to obtain the best distribution of final wall thickness in the bottle. Four different diameter of parison were considered. This software can perform a number of complex calculations which are multi domain simulations, co-extrusion of several fluids and three-dimensional extrusion. A time dependent problem is defined and setting material properties and boundaries condition for a 2D axisymmetric bottle blow molding. Numerical data available in Polydata(setup) for a time dependent problem Ansys sofware were applied. (Gupta.S and Uday.V 2013). This project will use the plastic material which is polypropylene. Polypropylene is a common plastic used for blow moulding. It offers many advantages over other blow moulding resins. A high heat distortion temperature allows its use in hot fill applications. The ability to be autoclaved without excessive haze or colour development enables it to be used in medical applications. It also has excellent environmental stress cracking resistance, as well as chemical and solvent resistance. Polypropylene has good contact clarity, low colour, and very low moisture transmission rates, all of which make it ideal for blow moulding applications. (Richardson and Lokensgard 1997)

PROBLEM STATEMENT

For a past year, there is a lot of techniques blow molding to produce the hollow part by using the plastic as the material. On conventional machine, blow molding of heavily convoluted, three-dimensional tubular shapes, such as fuel tank filler pipes, automotive air ducts, tubes used in household appliances, inevitably results in welding seams at the pinch areas causing potentially large amounts of flash at the mold parting line. It also only uses trial and error method to produce mold and parison where it is more investment in capital company to produce the part. In this project, the project statement and knowledge is very limited such as finding journal, previous research and this software is very limited to find the tutorial as reference. To overcome the problem, blow molding technologies offer minimum flash production achieving significant savings in material, energy usage, cycle times and, capital spending. It also can choose the best parison to use in blowing process. In 2D blow molding, a parison sized according to the diameter is manipulated by Ansys software directly into the cavity of the blow mold to avoid defect areas on the surface of bottle and minimizing overall material usage and also the thickness on the bottle. Using Ansys software it can make the fast result, reduce the time step, and it is 90% accurate with the actual process.  It also can determine the stress occurs on the bottle part. Basically to produce this part only using polypropylene (PP) as the material because it can improve the mechanical properties to be good, heat resistance good to chemical, good flow, and processibility. Therefore, this project wants to analyze the effect on the final wall thickness with different diameter of parison and stress contour occurs. This project are been done to gather more information to predict the result as in the actual blowing process.

OBJECTIVES

The main objectives of this project are:

 1) To design and simulate the different parison diameter via ANSYS software.

2) To analyze the effect on the final wall thickness with different diameter of parison and stress contour occurs.

3)  To validate the results of simulation works.

SCOPE OF PROJECT

This project is focus on the materials, simulation process work, parison diameter and thickness on the bottle where 8, 10, 18, and 20mm diameter of parison will use to investigate the effect on final wall thickness and contour stress by using ANSYS software. The graphical of bottle is followed by Pepliński.K and Mozer.A (2010) journal but the design of the mold and parison shape used with the different diameter. In this software the method to produce the part is using blow molding technique which is extrusion blow molding. This techniques begin the large pressure which is 2.0Mpa is applied to perform which enters the mold and the parison will expand eventually takes its shape. Times steps during the parison expand to contact the cavity wall is 0.1s. The ANSYS software has been used as 2D blow molding simulation tools in order to simulate the behavior of characteristics of part produce with different diameter parison. After the simulation process completed, the wall thickness will be investigate by see the effect on the final wall thickness and stress contour occurs through the software.  As the conclusion the best results of the selection parison using polypropylene material are suggested for improvement some recommended in the future work.
